Descrizione

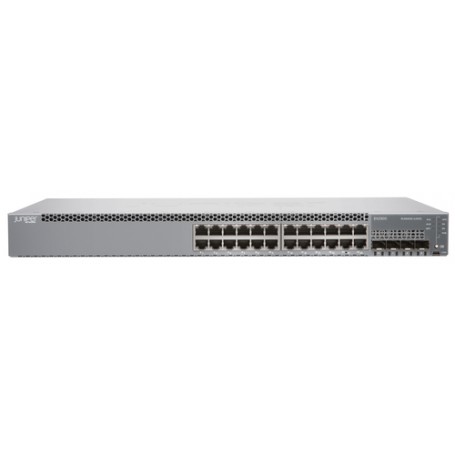

Juniper EX2300. Livello del commutatore: L2/L3. Tipo di porte RJ-45: Gigabit Ethernet (10/100/1000), Quantità di porte RJ-45: 24. Dimensioni tavola MAC: 16000 voci, Capacità di commutazione: 128 Gbit/s. Standard di rete: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE.... Supporto Power over Ethernet (PoE). Montaggio rack, Fattore di forma: 1U
Scheda tecnica
- Colore del prodotto
- Grigio
- Larghezza
- 441.9 mm
- Intervallo temperatura di funzionamento
- 0 - 45 °C
- Profondità
- 31 mm
- Altezza
- 44.5 mm
- Peso
- 4.49 kg
- Fattore di forma
- 1U
- Certificazione
- RoHS
- Emissione acustica
- 39.3 dB
- Intervallo di temperatura
- -40 - 70 °C
- Montaggio rack
- Sì
- Sicurezza
- UL-UL60950-1. C-UL CAN/CSA 22.2 #.60950-1. TUV/GS EN 60950-1. CB-IEC60950-1. EN 60825-1
- RAM installata
- 2000 MB
- Range di umidità di funzionamento
- 10 - 85%
- Umidità
- 0 - 95%
- Standard di rete
- IEEE 802.1D.IEEE 802.1Q.IEEE 802.1ab.IEEE 802.1p.IEEE 802.1s.IEEE 802.1w.IEEE 802.1x.IEEE 802.3.IEEE 802.3ab.IEEE 802.3ad.IEEE 802.3af.IEEE 802.3ah.IEEE 802.3at.IEEE 802.3u.IEEE 802.3z
- Quantità di porte RJ-45
- 24
- Tipo di porte RJ-45
- Gigabit Ethernet (10/100/1000)
- Supporto 10G
- Sì
- Auto MDI/MDI-X
- Sì
- Dimensioni tavola MAC
- 16000 voci
- Supporto Power over Ethernet (PoE)
- Sì
- Consumo energetico (max)
- 80 W
- Tipo memoria
- DRAM
- Algoritmi di sicurezza supportati
- 802.1x RADIUS.HTTPS.SNMP.SSH-2
- Supporto multicast
- Sì
- Gestione web-based
- Sì
- Supporto qualità del servizio (QoS)
- Sì
- Registro evento di sistema
- Sì
- Altitudine di funzionamento
- 0 - 3962 m
- Altitudine di non-funzionamento
- 0 - 4572 m
- Frequenza del processore
- 1250 MHz
- Memoria flash
- 2000 MB
- Processore integrato
- Sì
- Compatibilità elettromagnetica
- FCC 47CFR 15 A. EN 55022 A. ICES-003 A. VCCI A. AS/NZS CISPR 22 A. CISPR 22 A. EN 55024. EN 300386. CE
- Bilancio energetico totale del PoE
- 370 W
- Tecnologia Ethernet su cavi in rame
- 10BASE-T.100BASE-T.1000BASE-T
- Capacità di commutazione
- 128 Gbit/s
- Store-and-forward
- Sì
- VLAN support
- Sì
- Supporto Jumbo Frames
- Sì
- Caratteristiche della LAN virtuale
- Private VLAN.Tagged VLAN.Port-based VLAN
- Funzione IGMP snooping
- Sì
- Lista di controllo accesso (ACL)
- Sì
- Livello del commutatore
- L2/L3
- Quantità di slot del modulo SFP+
- 4
- Mirroring della porta
- Sì
- Routing IP
- Sì
- Raggruppamento link
- Sì
- Numero di VLA
- 4093
- Caratteristiche DHCP
- DHCP server.DHCP client
- Apertura albero di protocollo
- Sì
- Throughput
- 95 Mpps
- Quantità di porte Power over Ethernet plus (PoE+)
- 24
- Ispezione ARP
- Sì
- Tecnologia delle fibre dei cavi elettrici
- 1000BASE-LHX.1000BASE-X.1000BASE‑LX.1000BASE‑SX
- Supporto MIB
- RFC 1155. RFC 1157. RFC 1212. RFC 1213. RFC 1215. RFC 1493. RFC 1643. RFC 1724. RFC 1905. RFC 1981. RFC 2011. RFC 2012. RFC 2013. RFC 2096. RFC 2287. RFC 2460. RFC 2464. RFC 2570-2575. RFC 2576. RFC ...
- Limitazione della velocità
- Sì
- Frame Jumbo
- 9216
- Regole della Lista di Controllo Accessi (ACL)
- 1500
